The design of integrated outlet water header pipe of cylinder head is adopted, which reduces the sealing surface and improves sealing reliability.
Full-flow oil cooler is adopted; thus heat dissipation efficiency is increased by 30% and oil temperature is effectively reduced; and the oil can lubricate the parts under reasonable temperature to reduce the friction loss.
Leading and mature electronic HPCR fuel system fuel system and high-efficient turbocharged intercooled technologies are adopted, which ensure precise control of fuel-injection quantity and sufficient air intake; and the full combustion, low fuel consumption and less emission of diesel engine under different load conditions are ensured.
The main structures, such as engine body, are time-tested, which ensures the high reliability of the whole engine.
The internally-cooled oil channel is adopted for piston, which effectively reduces piston temperature and ensures the long service life.
Requirements for Grade G3 generator set performance is satisfied.

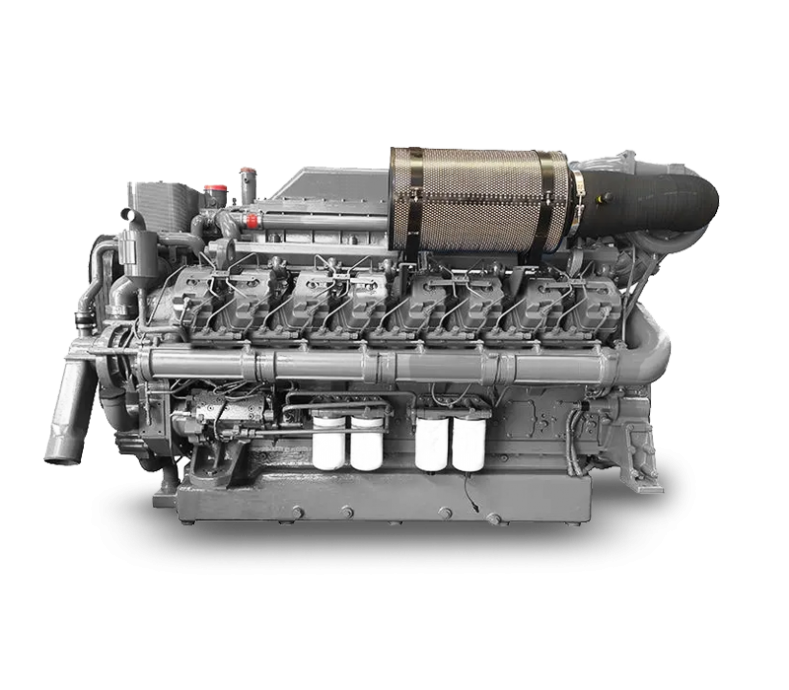

| Models | LTE16V2270 | LTE16V2510 | LTE16V2700 |
|---|---|---|---|
| Number of cylinders-Bore × Stroke(mm) | 16-152×180 | 16-152×180 | 16-152×180 |
| Displacement(L) | 52.26 | 52.26 | 52.26 |
| Number of valves per cylinder | 4 | 4 | 4 |
| Air intake method | Supercharged intercooler | Supercharged intercooler | Supercharged intercooler |
| Common power/speed kW/(r/min) | 1520/1500 | 1680/1500 | 1805/1500 |
| Standby power/speed kW/(r/min) | 1672/1500 | 1850/1500 | 1985/1500 |
| Emission levels | Emission Optimize | Emission Optimize | Emission Optimize |
| Emissions Technical Route | Electronically controlled High pressure Common Rail by Liebheer | Electronically controlled High pressure Common Rail by Liebheer | Electronically controlled High pressure Common Rail by Liebheer |
| External characteristics minimum fuel consumption g/kW·h | ≤205 | ≤205 | ≤205 |
